Copper PVC Control Cable Round Crosslinked Polyethylene For Construction

Henan Interbath Cable Co.,Ltd

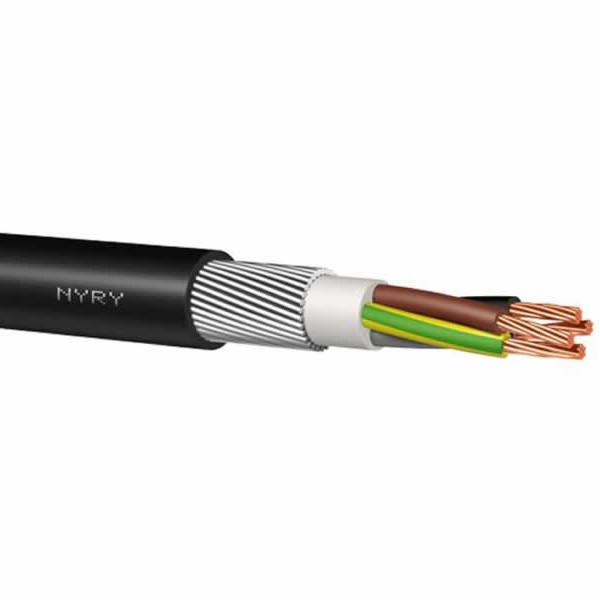

Copper PVC Control Cable Round Crosslinked Polyethylene For Construction

  • 1
  • 2

Brand Name : Huanghe

Model Number : Armoured Power and Control Cable

Certification : IOS OHSAS CCC IEC

Place of Origin : China

MOQ : 100 Meters

Price : 0.1-200 USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000 Meters Per Week

Packaging Details : Wooden Drum

Conductor : Stranded Copper Cable

Sheathed : XLPE/PVC/PE

Insulation Material : XLPE/PVC/PE

Application : Construction

Rated voltage : 450-750V

Brand : Huanghe

Contact Now

Copper PVC Control Cable Round Crosslinked Polyethylene For Construction

STANDARDS/REFERENCES:

  • International: IEC 60227-5
  • National: GB/T 9330-2008

CONSTRUCTION CHARACTERISTICS
CONDUCTOR:

  • bear copper class 1 according to IEC 60228 (solid conductors)
  • bear copper class 2 according to IEC 60228 (stranded conductors)

INSULATION:

  • Crosslinked polyethylene ( XLPE)/PVC/PE

Core Identification : with continuous black numbering

Armoured:STA/SWA/AWA

SHEATH:

  • PVC (Polyvinyl Chloride)

Sheath color: black
DIMENSIONAL CHARACTERISTICS
[Number of cores ]: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
[Conductor size] : 1.0, 1.5, 2.5, 4, 6, 10 mm2
TECHNICAL DATA
[Rated voltage (Uo/U) ]: 450/ 750V
[Test voltage ]:3000 V
USAGE CHARACTERISTICS
[Maximum operating temperature] : 90 ℃
[Short-circuit max conductor temperature ( duration up to 5s ) ]: 250 ℃
[Temperature range]: -5 to +90 ℃
INSTALLATION CONDITION
[Installation temperature ]: 5 ℃
[Minimum bending radius ]: 6 x cable diameter
[Recommended maximum tensile stress]: 50 N/mm2

Application:

Copper PVC Control Cable Round Crosslinked Polyethylene For ConstructionCopper PVC Control Cable Round Crosslinked Polyethylene For Construction

Type Name Section Area(mm2) No. of Core Application Site

KVV

Copper Conductor,

PVC Insulated and Sheathed Control Cable

0.75 1.0 1.5 2.5 2-16 Permanent installation indoors, in cable ditches or pipes
4 6 2-14
10 2-10

KVVP

Copper Conductor, PVC Insulated and Sheathed,Braiding Shielded Control Cable 0.75 1.0 1.5 2.5 2-61

Permanent installation indoors, in cable ditches or pipes where shielding is required

4 6 2-14
10 2-10

KVVP2

Copper Conductor, PVC Insulated and Sheathed,Copper-tape Screened Control Cable 0.75 1.0 1.5 2.5 4-10

Permanent installation indoors, in cable ditches or pipes where shielding is required

4 6 7-61
10 4-10
KVV22 Copper Conductor, PVC Insulated and Sheathed,Steel tape Armored Control Cable 0.75 1.0 1.5 2.5 7-61 Permanent installation indoors, in cable ditches, Be able to withstand stronger external mechanical force
4 6 4-14
10 4-14
KVVR Copper Conductor, PVC Insulated and Sheathed,Flexible Control Cable 0.5-2.5 4-61 Installation indoors where flexibility and mobility are required
KVVRP Copper Conductor, PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable 0.5 0.75 1.0 4-61 Installation indoors where flexibility shielding and mobility are required
1.5 2.5 4-48

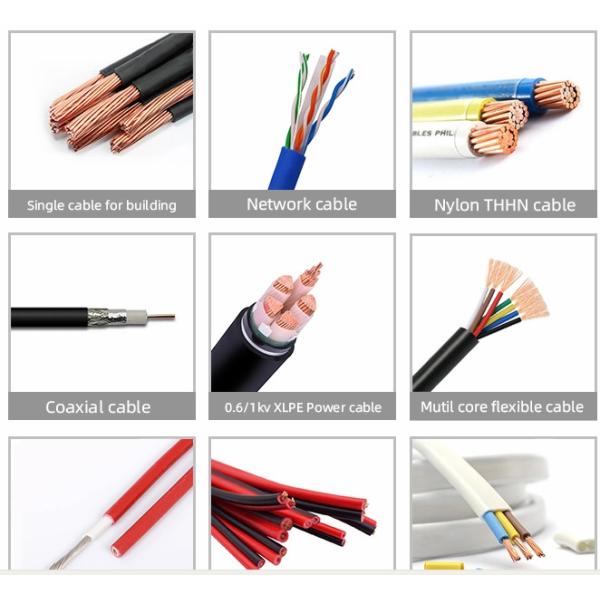

Copper PVC Control Cable Round Crosslinked Polyethylene For Construction

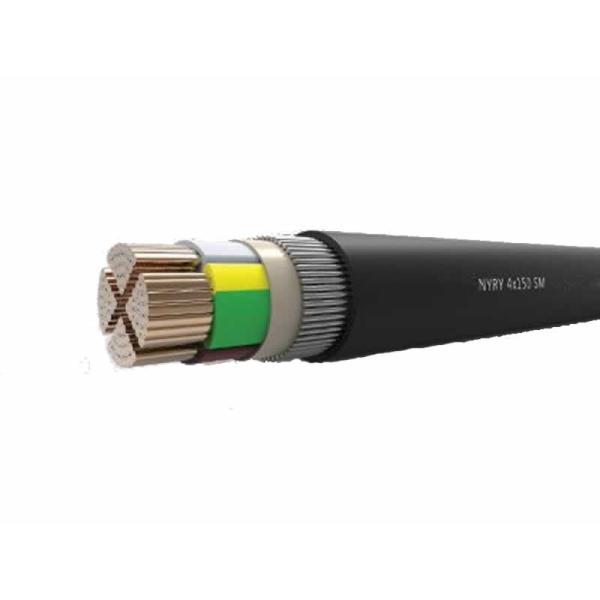

Copper PVC Control Cable Round Crosslinked Polyethylene For Construction
